CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

  • 1
  • 2
  • 3

Brand Name : UNICOMP

Model Number : AX9100max

Certification : CE, FDA

Place of Origin : China

MOQ : 1 set

Price : can negotiate

Payment Terms : L/C, T/T

Supply Ability : 100set/montrh

Delivery Time : 15 days

Packaging Details : Unicomp Wood.

Contact Now

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.

  • Application Fields

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

  • Functions and Feature

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

  • Inspection Image

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

System Summary
Footprint 1450(W)×1680(D)×1850(H)mm
Machine Weight 2400 kg
Power Supply 220AC/50Hz
Packaging Dimension 1710(W)×1950(D)×1875(H)mm
Power Consumption 3.5 kW
Packing Weight 2600 kg
X-Ray Tube
Tube Type Type Sealed type
Max. Power Output 65W
Voltage 0~130kV (Adjustable)
Focus Spot Size ≤8μm
Imaging System
Detector High Resolution FPD
Pixel Size ≤85μm
Effective Detection Area 130*130mm
Pixel 1536*1536
Frame Rates 20fps
System Magnification 1600X
Software
One-click Zoom in & out Fast & Automatic navigation of ROI region
Fixed-point following during FPD tilting Table automatic following while Axis tilting seperately
Algorithms For Image Super-Resolution Reconstruction Intelligently improve the overall image clarity with one-click
Automatic images comparison Intelligently adjust overall image contrast with one-click
Variety of filter processing algorithms Sharpening, enhancement, color reversal, denoising image preprocessing functions
Motion Control System
Movement Control Method Dual Joystick, Keypad & Mouse
Max. Loading size Ф620mm
Max. Inspection size 600*450mm
Tilting Inspection Maximum 60°
Objective Stage Horizontal Rotation 360°
Industrial PC
Operating System Windows 10 64bit
Monitor(Dual) 27 "4K HD display
Hard disk 1TB
RAM 16G
CPU model Intel i7 Processor
Other Features
Door Open Manually
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
Authority Management Fingerprint Access Management System, and Support Password Accessing
X-Ray Safety <1μSv/h (Meets All International Standards)

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

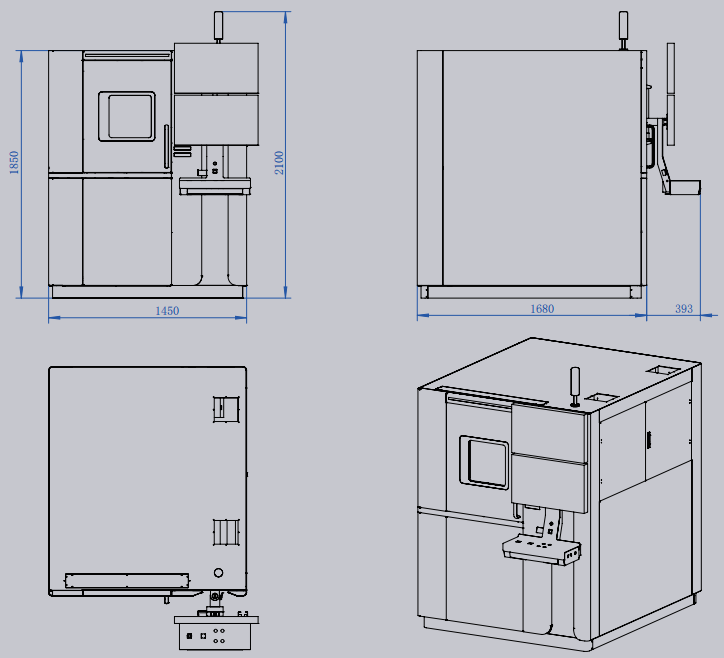

  • Dimensions and Appearance

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure
